eFRAME

TM

ENCLOSURES

Walk-in enclosures made by Kohler for KOHLER® generators.
Quality enclosures that reduce install time, service, and maintenance.

THE POWER WITHIN.

At Kohler, we take our cues from our customers and work to design products that suit your needs. With that in mind, Kohler has designed a range of exclusive eFRAME enclosures that are specifically geared to accommodate KOHLER® generators.

The eFRAME enclosure ensures that your complete power generation needs are available from a single source. Trust Kohler to install, service, and maintain your generator system and all its powerful parts.


  eFRAME Brochure

Watch video

Construction


• Modular design with is capable of being split into three separate independent sections making replacement or service quick and easy
• Fade-, scratch-, and corrosion-resistant powdered – coated exterior
• Aluminum construction
• Acoustic insulation (51 mm) meets UL 94 HF1 flammability classification and repels moisture


Doors


• Four hinged, doors for easy maintenance
• Rubber-sealed access doors prevent weather infiltration and minimize noise
• Door retention and door holdback
• Lockable stainless steel external door latches and internal crash bar for exit
• Interior exit sign above doors


Lighting


• LED exterior lighting above entrance doors
• Interior exit sign above doors
• AC light switches with GFCI outlets mounted next to entry door
• Four interior LED DC Lights and four interior AC lights


Tank


• Powder-coat, textured black finish
• Generator mounts to tank top and enclosure then mounts to the perimeter of the tank
• Tank acts as walking surface within enclosure for ultimate generator access


Five-gallon spill containment


• Five-gallon spill containment with 95% shutoff – overfill prevention valve


Four alarm panel


• Four alarm panel with four alerts (critical low, low, high and critical high)


Emergency Relief Vents


• Inner and outer tanks have UL-listed emergency relief vents

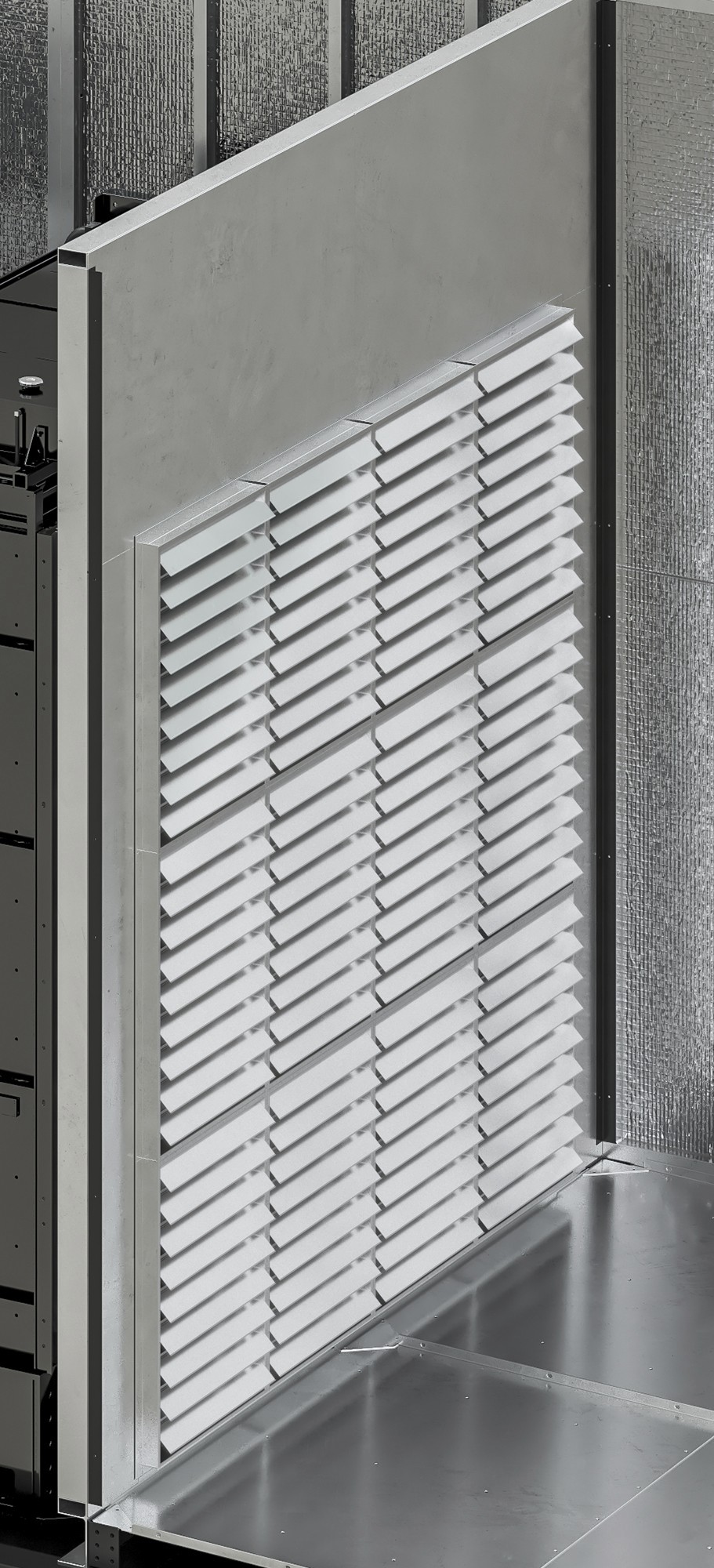

Louvers


• Air inlet louvers reduce rain and snow entry, maintaining adequate air flow
• Louver blade profile allows air to pass through but prevent rain ingress
• Kohler produced high velocity intake louvers are designed to allow higher airflow to reduce the inlet, and therefore overall size of the enclosure


Switchboard


• Switchboard is shipped with enclosure
• External provisions for load bank or portable generator hookup


Easy Cable Entry Access


• Cable entry access available either through the tank stub-in or through the top of the right or left side panels of the enclosure


Exhaust Rain Cap


• Exhaust rain cap to inhibit rain from entering


Noise Reduction



• 90-degree vertical air outlet redirects air to reduce noise
• Enclosed insulated exhaust silences for improved safety and noise reduction; can be internally packed or externally insulated for use with field-added aftertreatment
• Behind louvers is a set of parallel plate baffles with acoustic insulation for noise reduction

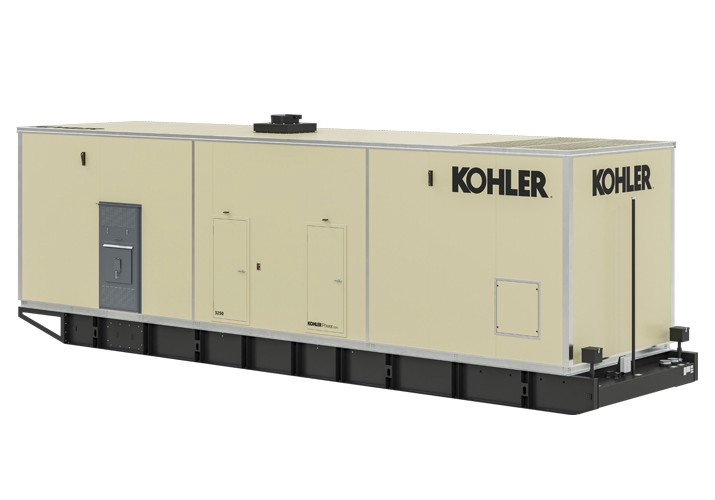

SINGLE SOURCE,
DIRECT FROM KOHLER.

Hover over the numbers to learn more about KOHLER® eFRAME enclosures.

THE NAME THAT STANDS FOR MORE.

FLEXIBLE.

RELIABLE.

ACCESSIBLE.

MODULAR.

EASY.

Construction


• Modular design with is capable of being split into three separate independent sections making replacement or service quick and easy
• Fade-, scratch-, and corrosion-resistant powdered – coated exterior
• Aluminum construction
• Acoustic insulation (51 mm) meets UL 94 HF1 flammability classification and repels moisture


Doors


• Four hinged, doors for easy maintenance
• Rubber-sealed access doors prevent weather infiltration and minimize noise
• Door retention and door holdback
• Lockable stainless steel external door latches and internal crash bar for exit
• Interior exit sign above doors


Lighting


• LED exterior lighting above entrance doors
• Interior exit sign above doors
• AC light switches with GFCI outlets mounted next to entry door
• Four interior LED DC Lights and four interior AC lights


Tank


• Powder-coat, textured black finish
• Generator mounts to tank top and enclosure then mounts to the perimeter of the tank
• Tank acts as walking surface within enclosure for ultimate generator access


Five-gallon spill containment


• Five-gallon spill containment with 95% shutoff – overfill prevention valve


Four alarm panel


• Four alarm panel with four alerts (critical low, low, high and critical high)


Emergency Relief Vents


• Inner and outer tanks have UL-listed emergency relief vents


Louvers


• Air inlet louvers reduce rain and snow entry, maintaining adequate air flow
• Louver blade profile allows air to pass through but prevent rain ingress
• Kohler produced high velocity intake louvers are designed to allow higher airflow to reduce the inlet, and therefore overall size of the enclosure


Switchboard


• Switchboard is shipped with enclosure
• External provisions for load bank or portable generator hookup


Easy Cable Entry Access


• Cable entry access available either through the tank stub-in or through the top of the right or left side panels of the enclosure


Exhaust Rain Cap


• Exhaust rain cap to inhibit rain from entering


Noise Reduction



• 90-degree vertical air outlet redirects air to reduce noise
• Enclosed insulated exhaust silences for improved safety and noise reduction; can be internally packed or externally insulated for use with field-added aftertreatment
• Behind louvers is a set of parallel plate baffles with acoustic insulation for noise reduction


FLEXIBLE.

Our eFRAME enclosures are completely customizable to meet user needs and can accommodate a variety of uses. Through the optimizations of additional features, such as the ability to modify switchboard and breakers, our power system are ideal for mission-critical applications - including data centers, water utilities, and healthcare facilities, all while meeting customer requirements and any additional state and/or local code options that are required for the use of a subbase tank.

RELIABLE.

eFRAME enclosures go through vigorous testing and approval to ensure reliability in the most demanding environments.

  • UL 2200 FTTP-certified for construction
  • Meets and exceeds 135-mph wind load rating
  • IBC-certified for site-specific use
  • Subbase tank meets UL 142, ULC, and state-specific requirements
  • Internal engineering analyses (including FEA) are used to optimize cost and ensure shipping and wind load requirements are met

ACCESSIBLE.

Our modular enclosures are custom-designed for ultimate serviceability. Easily access the engine and radiator, without the need to disconnect, to rapidly troubleshoot without losing power.

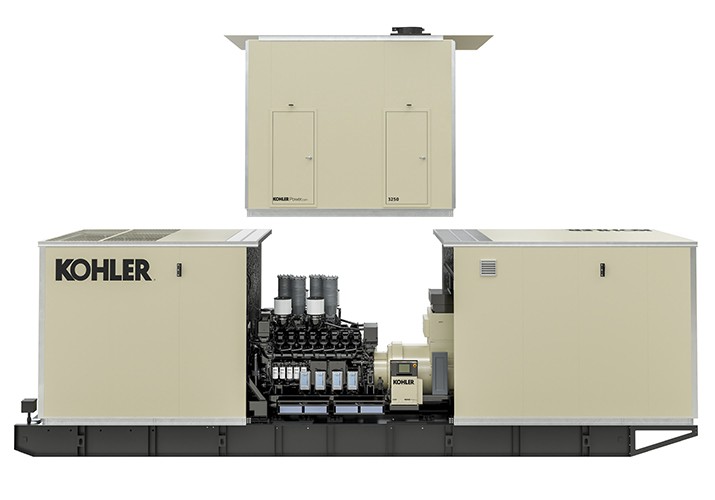

MODULAR.

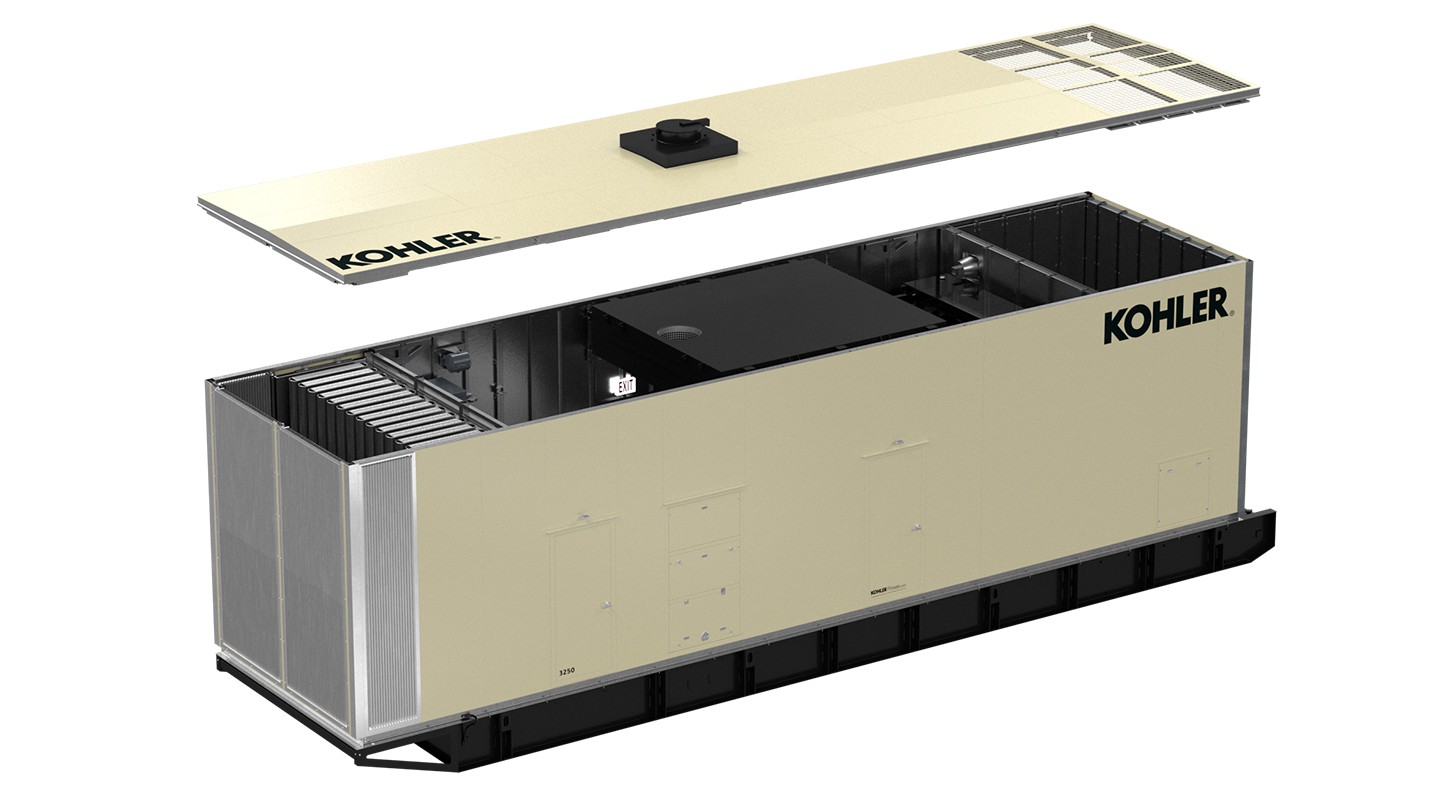

The modular design of our enclosures reduces service costs and downtime with the capability to be split into three independent sections. This makes replacement or service, for any generator component, quick and easy.

EASY AS 1,2,3.

Just a few simple steps is all it takes!

  • Set the tank, mount the generator, and then set the enclosure
  • Wire alternator load leads to the freestanding breaker
  • Ensure everything is connected: customer connections (including load leads), shore power, and communication cables

POWER CONSIDERATIONS

Designing power systems that meet requirements for the highest levels of uptime requires expert attention to system architecture and equipment redundancy. Total system integration means your generators, transfer switches, paralleling switchgear, and controllers are all designed to work together. We know you have a lot to consider. That’s why we make it easy.

Contact us today and experience The KOHLER Difference.
